Single 3.3V Power Source 100GBase QSFP28 ER4 40KM Fiber Optic Equipment Duplex LC Optical Transceiver Module for Your Requirements

Name: Single 33V Power Source 100GBase QSFP28 ER4 40KM Fiber Optic Equipment Duplex LC Optical Transceiver Module for Your Requirements
Brand: Starsurge
Price: 1 USD

Quality Single 3.3V Power Source 100GBase QSFP28 ER4 40KM Fiber Optic Equipment Duplex LC Optical Transceiver Module for Your Requirements wholesale

Model Number : CC-QKKLL4L-SD

Place of Origin : China

Brand Name : Starsurge

Price : Negotiable

Certification : RoHS CE FCC UL

MOQ : 1 pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 2-7days

Packaging Details : carton

Type : Optical Transceiver

Use : Data Center, Telecom Network

Warranty Time : 1 year

Network : Ethernet

Port : QSFP28

Power Source : Single +3.3V

Connector Type : LC Duplex

Power - Minimum Receivable : <4.5W

Frequency Range : 25.78125Gb/s

Transmission Distance : 40km

Fiber Type : SMF

Standards : SFF8436, SFF-8636, SFF-8665, SFF8661, IEEE 802.3ba

EMI Performance : All-metal Housing

Compliance : RoHS

Features : Hot Pluggable, Low Power Consumption, High-speed Transmission

Receiver Sensitivity : <-15dBm

Contact Now

Single 3.3V Power Source 100GBase QSFP28 ER4 40KM Fiber Optic Equipment Duplex LC Optical Transceiver Module for Your Requirements

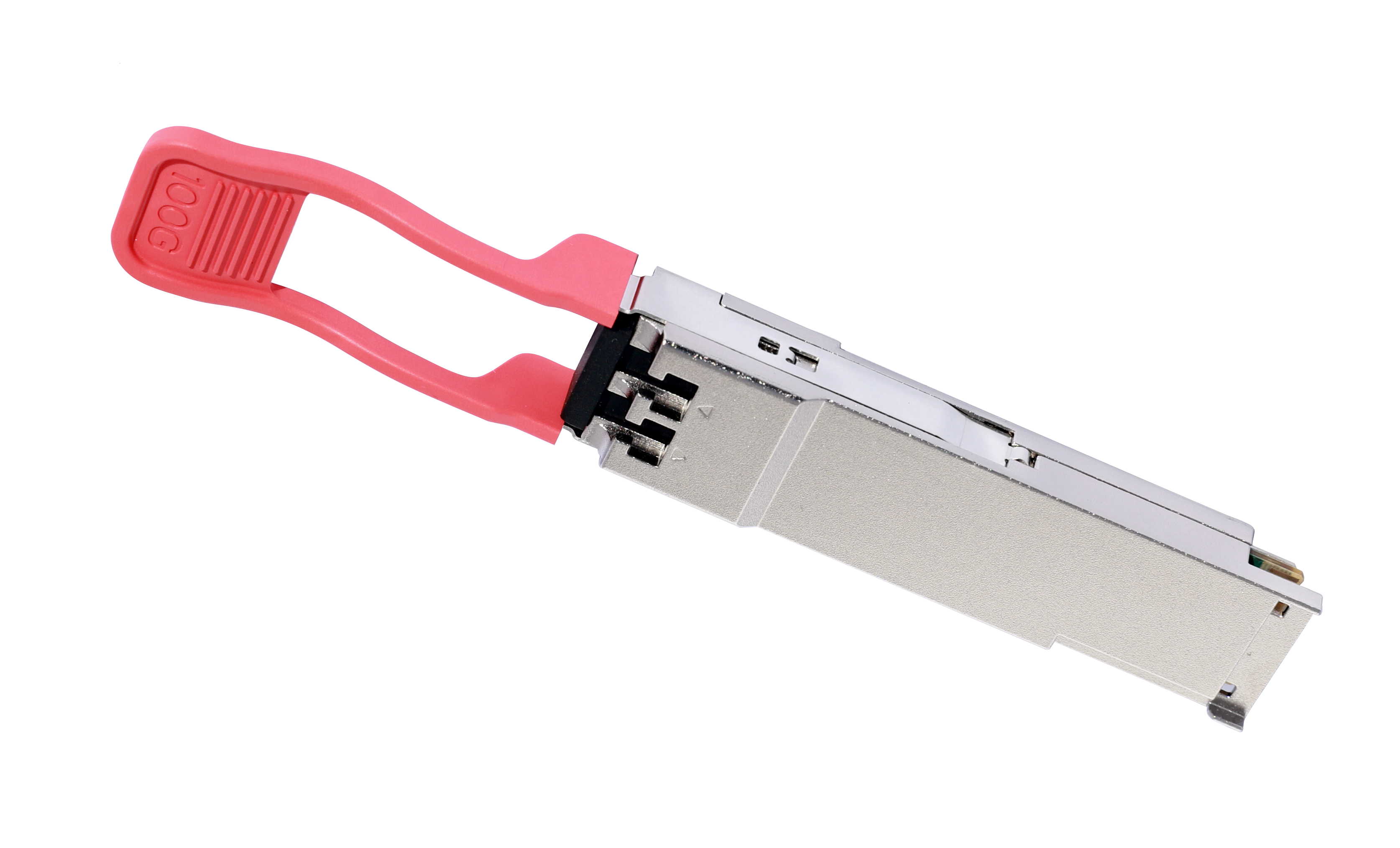

100GBase QSFP28 ER4 40KM Optical Transceiver Module CC-QKKLL4L-SD

The 40km 100GBase-ER4 QSFP28 transceiver is designed to meet the requirements of 100G ethernet links over SMF up to 40km. It is compliant with QSFP28 MSA, IEEE 802.3ba. It is cost-effective, low power consumption with a single 3.3V power supply. The module has an aggregate bit rate up to 103.125Gbps by multiplexing of 4 inde pendent LAN-WDM optical lanes, each lane capable of transmitting 25.78125Gb/s over 40km SMF with FEC. It is fabricated with all-metal and compact size housing for superior EMI performance.

Applications

 100G ethernet

 Other optical links

Standards

 SFF8436,SFF-8636

 SFF-8665, SFF8661

 IEEE 802.3ba

Features

 Hot Pluggable QSFP28 form factor

 Supports aggregate bit rate up to 103.125Gb/s

 LC Duplex optical interface

 4x25Gb/s LAN-WDM transmitter, EML laser,APD ar ray detector

 Operating case temperature:0 to 70 °C

 Low power consumption<4.5W

 Applicable for 40km SMF connection without FEC

 All-metal housing for superior EMI performance

 IIC management interface

 Single +3.3V power supply

 RoHS compliant (lead free)
