25G SFP28 SR Dual LC Transceivers Module Power Source DC 3.3V Compatibility SFP28 MSA for Fiber Optic Equipment

Name: 25G SFP28 SR Dual LC Transceivers Module Power Source DC 33V Compatibility SFP28 MSA for Fiber Optic Equipment
Brand: Starsurge
Price: 1 USD

Quality 25G SFP28 SR Dual LC Transceivers Module Power Source DC 3.3V Compatibility SFP28 MSA for Fiber Optic Equipment wholesale

Model Number : CC-PMM110L-SD

Place of Origin : China

Brand Name : Starsurge

Price : Negotiable

Certification : RoHS CE FCC UL

MOQ : 1 pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 2-7days

Packaging Details : carton

Type : Optical Transceiver

Use : network

Warranty Time : 1 year

Network : Multi-mode

Port : Dual LC

Power Source : DC 3.3V

Connector Type : LC

Power - Minimum Receivable : -8.4 dBm (min) / 2.4 dBm (max)

Frequency Range : 850 nm

Product name : CC-PMM110L-SD

Transmission Distance : OM3-70m / OM4-100m

Operating Temperature Range : 0°C~70°C

Certifications : SFF-8431, SFF-8432, SFF-8024

Compatibility : SFP28 MSA

Contact Now

25G SFP28 SR Dual LC Transceivers Module Power Source DC 3.3V Compatibility SFP28 MSA for Fiber Optic Equipment

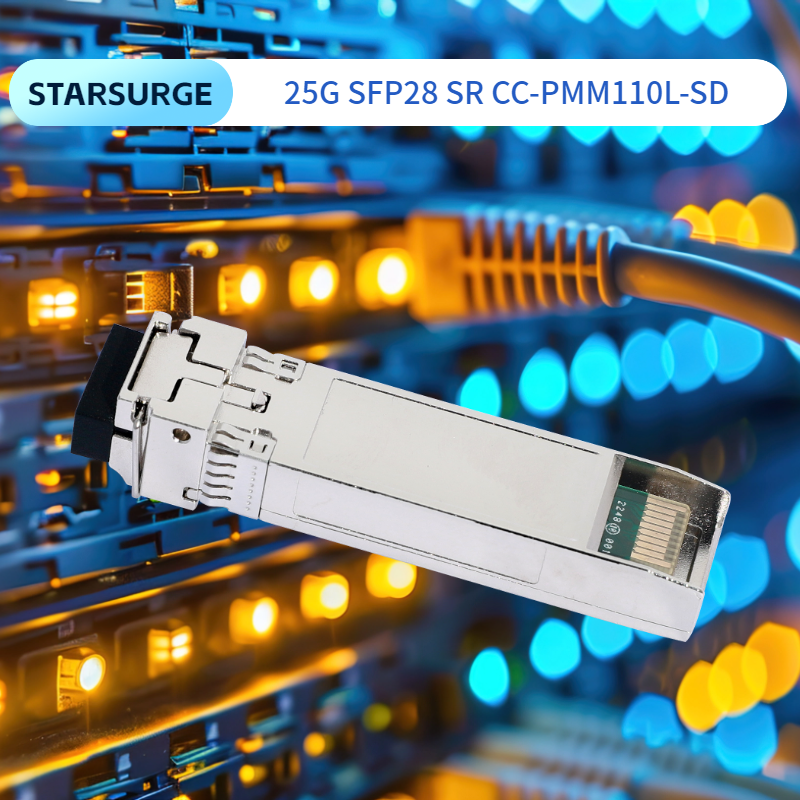

25G SFP28 SR Dual LC Transceivers CC-PMM110L-SD

The CC-PMM110L-SD Transceiver is intended for 100m reach service 25.78Gb/s 850nm Multi-mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compli- ant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. It utiliz- es internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Standards

• SFF-8024

• SFF-8431

• SFF-8432

• SFF-8472

Features

•25Gbps serial optical interface

•850nm VCSEL transmitter and GaAs PIN PD receiver

•Wide operating temperature(0°C~70°C)

•Maximum link length of 70m via OM3 multimode Fiber (MMF)

•Maximum link length of 100m via OM4 multimode Fiber (MMF)
