Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center

Product Categories
Hong Kong Starsurge Group Co., Limited
Contact Now

Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center

Model Number : CC-PII110L-xD

Place of Origin : China

Brand Name : Starsurge

Certification : RoHS CE FCC UL

Price : Negotiable

MOQ : 1 pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 2-7days

Packaging Details : carton

Type : Optical Transceiver

Use : network

Warranty Time : 1 year

Network : Data Center SFP Industrial Network

Product name : CC-PII110L-xD

Technology : 10GBASE-SR/SW

Max Speed : 300m on OM3 MMF

Working temperature : 0~+70 (Commercial) / -40~+80 (Industrial)

Fiber Type : Multi Mode Fiber (OM3)

Application : Data Center Short-Range Fiber Links

Material : All-Metal Housing

Contact Now

Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data CenterFiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center

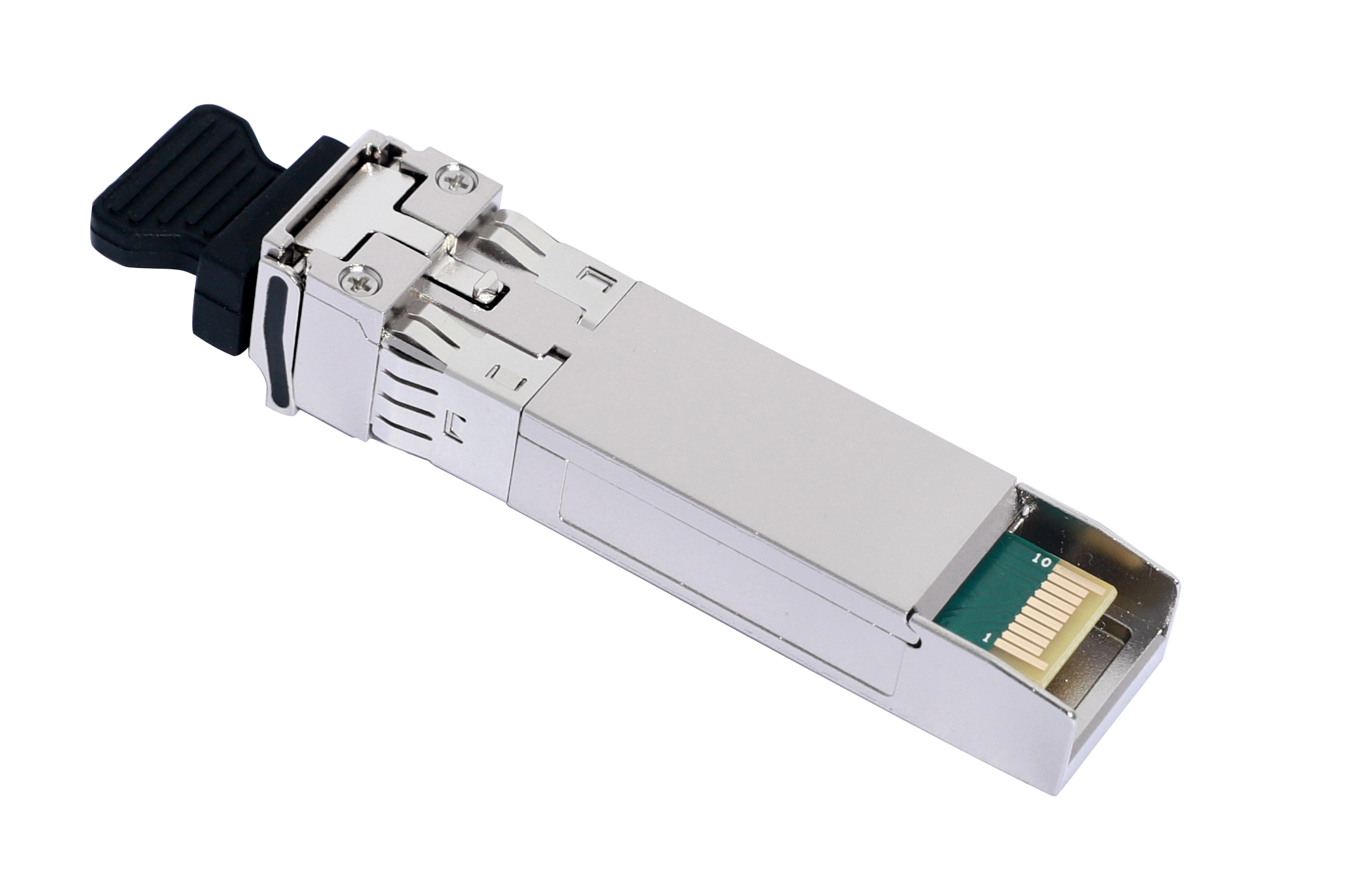

10Gb/s 850nm 300m SFP+ Optical Transceiver Module CC-PII110L-xD
This 850nm SFP+ transceiver is designed to transmit and receive optical data over
multimode fiber for 10G ethernet. The module
electrical interface is compliant to SFI electrical specifications. The transmitter
input and receiver output impedance is 100
Ohms differential. Data lines are internally AC coupled. The module provides
differential termination and reduce differential to
common mode conversion for quality signal termination and low EMI.

Standards

 IEEE 802.3ae 10GBASE-SR/SW
 SFF-8431, SFF-8432
 SFF-8472

Applications

 10GBASE-SR/SW
 Other optical links
Features
 Hot Pluggable
 LC Duplex optical interface
 850nm VCSEL transmitter, PIN receiver
 Operating case temperature: Commercial:0 to 70 °C Industrial:-40 to 85 °C
 Low power consumption
 Maximum link length of 300m on OM3 MMF
 All-metal housing for superior EMI performance
 Advanced firmware allow customer system encryption
 Information to be stored in transceiver
 Cost effective SFP+ solution, enables higher port densities and greater bandwidth
 RoHS compliant (lead free)
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Q1.What can you buy from us?
Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
We supply 12 months warranty time.
Q4.How about the Shipping Method?
We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7.Price questions
The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
